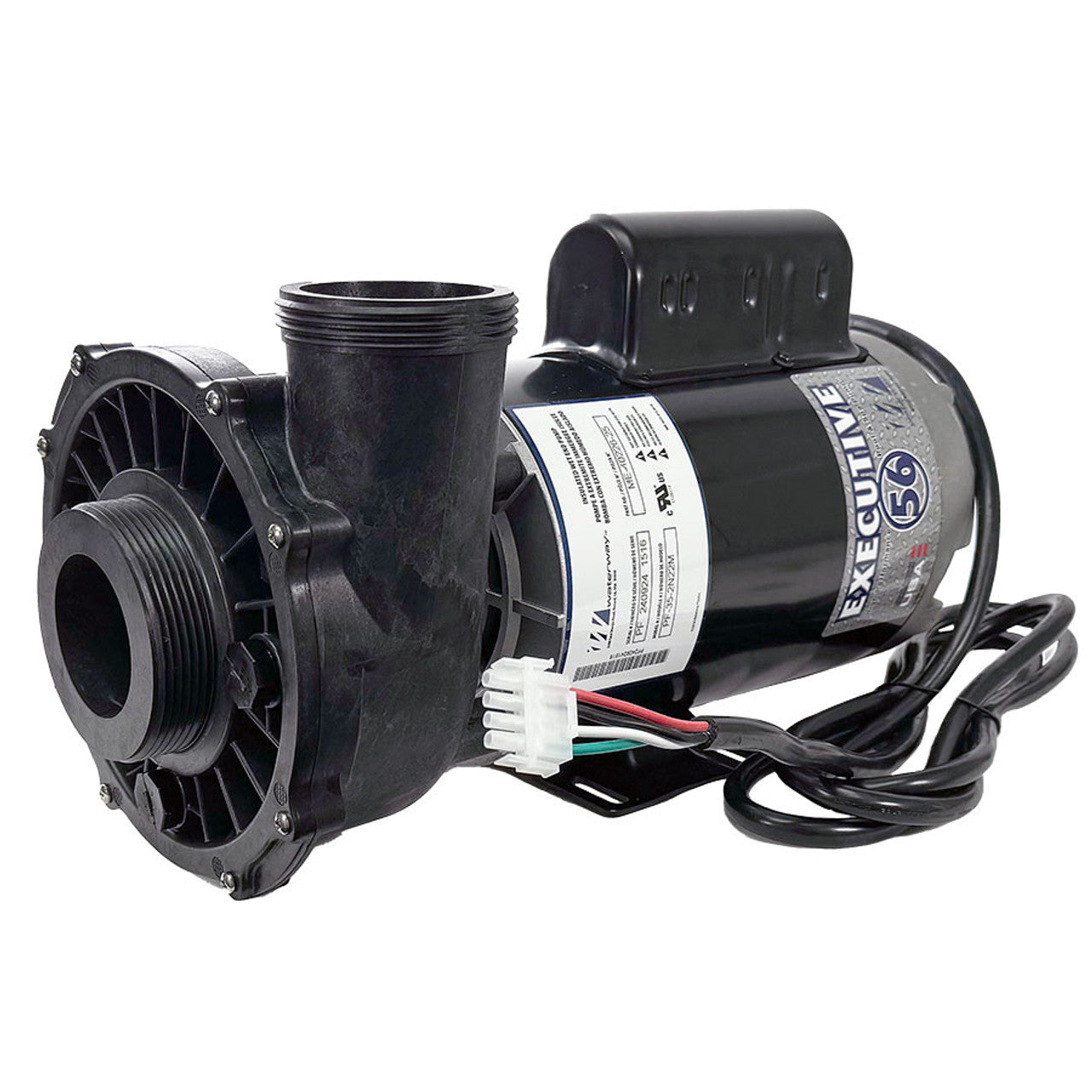

4 HP Waterway Executive 56 Pump, 2.5/2.0

The Waterway Executive 56 4HP hot tub pump has two speeds and features a split capacitor for both starting and running, which helps reduce energy consumption. It is thermally protected to enhance the motor's life expectancy. This model was originally labeled Waterway part number 3721621-13, which has been updated to the new model number PF-35-2N22M and the new part number ME-40226-25. The pump runs on 220-240 volts and is rated for 12.0 amps on high speed and 3.5 to 4.4 amps on low speed. This Waterway executive 56 frame 4.0 HP pump has a side discharge with the larger 2-1/2" threads on the intake that measure about 3-5/8" across outside.

Details:

• Waterway P/N: ME-402265-25
• Waterway Model: PF-35-2N22M
• Intake Threads: 2.5" (Actual 3-5/8" OD)
• Discharge Threads: 2" (actual 3-1/16" OD)
• Volts: 220 - 240 volts, 60 Hz
• High Speed Amps: 12.0, 3450 RPM
• Low Speed Amps: 3.5 - 4.4, 1725 RPM
• Includes factory installed 7ft cord with AMP plug
• Ships with discharge in vertical position, can be rotated left or right if required

Compatible replacement for:

• Waterway Executive 56, 3721621-03
• Waterway Executive 56, 3721621-13
• Waterway Executive 56, 3711621-03
• Waterway Executive 56, 3711621-13
• Waterway Executive 56, PF-30-2N22M (with 2.5" intake)
• Waterway Executive 56, PF-40-2N22C (with 2.5" intake)

IMPORTANT

The PF- model number should not be used as a reference for selecting a new replacement pump as Waterway has produced up to 4 known variations of pumps with the same model number which are different enough that they are not interchangeable. Always select a replacement pump with the same or replacement part number as the Waterway part number on the label on your old pump.

The last digit "C" or "M" in the model number only references the brand of electric motors Waterway uses on these pumps and does need to be matched on the new replacement pumps. C references Century/A.O. Smith brand motor and M references the new brand electric motor on the pump. The low speed amps can also vary depending on the motor brand from 3.5 to 4.4 which has no impact on performance.

Horsepower ratings

Choosing a pump based on Horsepower (HP) can be incorrect. The horsepower listed in your spa manual or on the old pump's label may be overinflated, inaccurate, or even left blank. Horsepower ratings on hot tub pumps are often listed as SPL-HP, BHP, MBHP, RHP or S-HP, which is not the same as continuous operating horsepower. Installing an oversized pump in your hot tub can cause significant damage.

To avoid choosing the incorrect pump, confirm if it’s a 48 frame or 56 frame, then use the high-speed Amperage rating listed on the old pump's label to find the correct replacement instead of the horsepower. The amperage rating is listed with both high/low speed for a 2-speed pump.

Determining hot tub pump thread size

Hot tub pump plumbing sizes are nominal and not the actual outside diameter (O.D.) of the threaded intake or discharge. To confirm your old pump thread sizes, use a tape measure and check the diameter of your old pump thread size.

• 1.5” Pump thread measures approx. 2-3/8” Outside Diameter
• 2.0” Pump thread measures approx. 3” Outside Diameter
• 2.5” Pump thread measures approx. 3-5/8” Outside Diameter

Amperage ratings

New hot tub pump amperage ratings may vary slightly for pumps with the same performance rating. The RPMs remain the same 3450 for high-speed and single-speed pumps and 1725 for low-speed for two-speed pumps.
